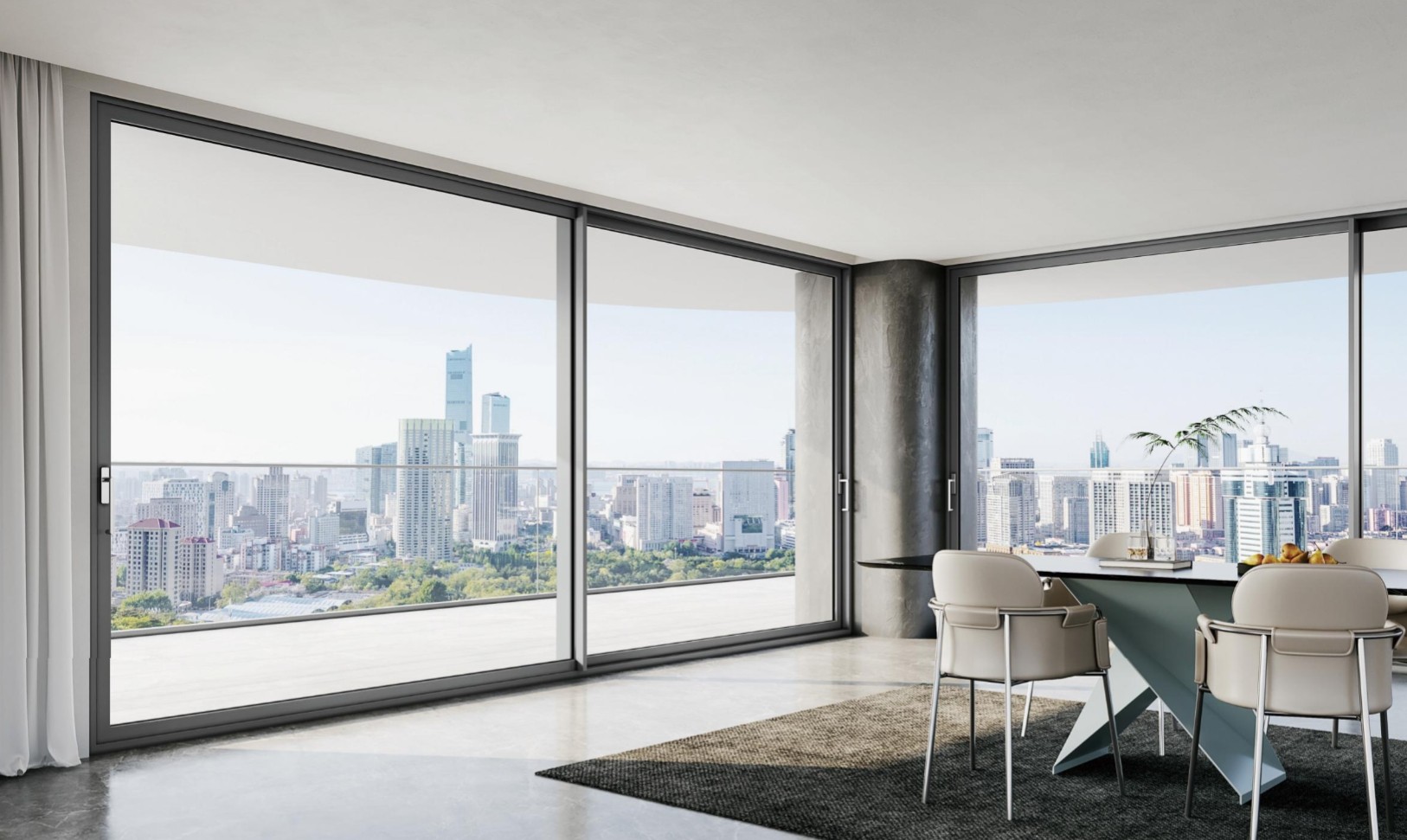

YPI Phantom S-Series PS128
PS128 slimline patio doors deliver horizontal sliding with narrow sightlines for residential patio openings — the door companion to the PS128 sliding window within the S-Series family.
Slimline patio / sliding door

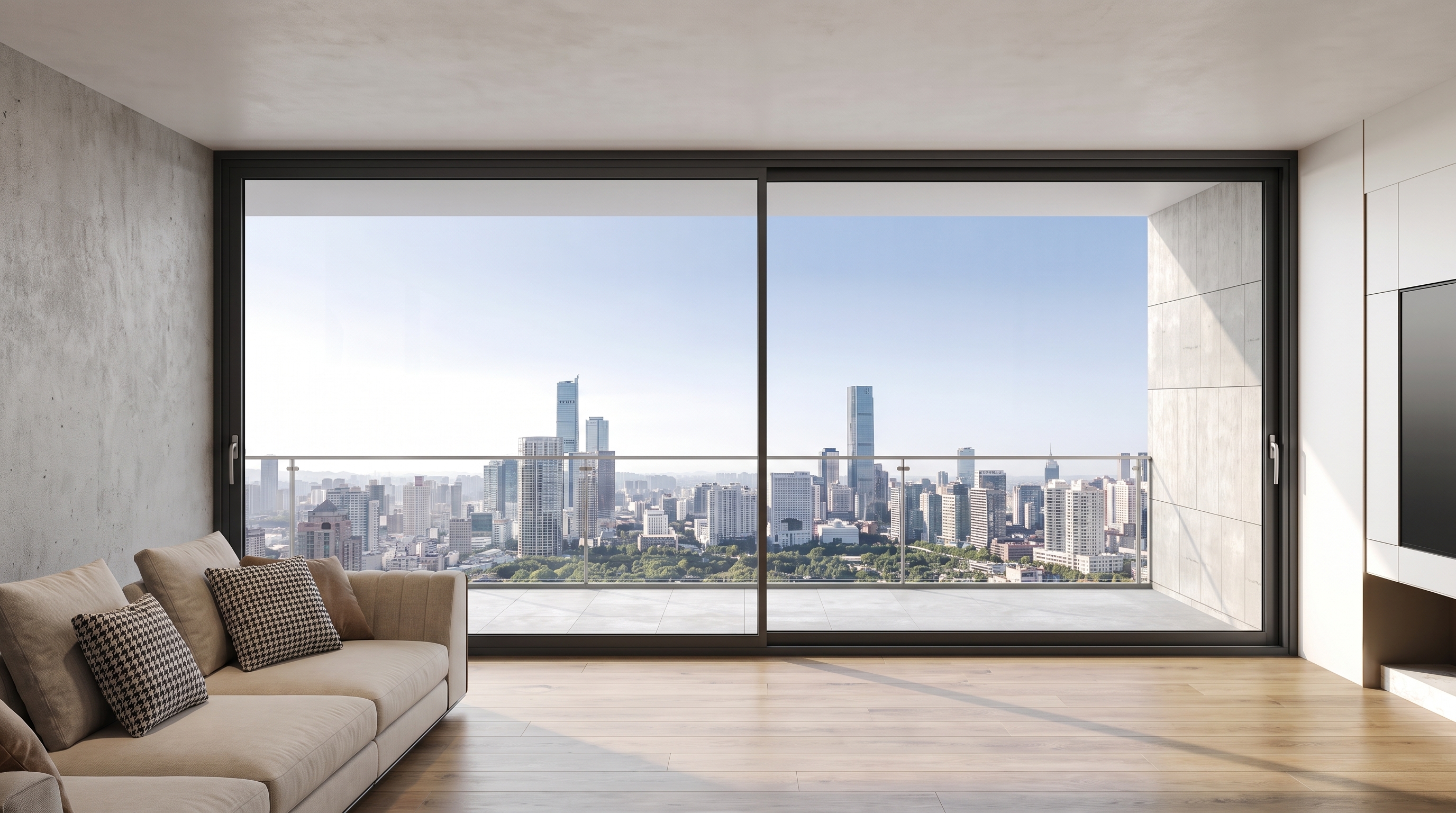

YPI Phantom S-Series PS128 Door Gallery
Patio door and detail references for the PS128 sliding system.
Technical Specifications
Dimensions & Structure
| Feature | Specification |
|---|---|
| Frame Depth | 128mm class (approx. 5.04 inches) |
| Aluminum Alloy | 6063-T5 High-Precision Extruded Aluminum |
| Wall Thickness | 2.0mm (Commercial Grade Standard) |
| Max Panel Height | Up to 2.8 Meters (approx. 9 Feet) |
| Max Panel Weight | Per roller schedule (Sized to span and glazing) |
Thermal Performance
| Feature | Specification |
|---|---|
| Thermal Break | Multi-Cavity PA66 Reinforced Nylon |
| Standard Glazing | 5mm Low-E / spacer / 5mm Tempered (dual pane) |
| U-Factor | 0.20 – 0.45 BTU/h·ft²·°F |
| Climate Zones | California Title 24 Compliant |
Engineering & Performance Highlights
Slimline patio operation
Smooth horizontal travel for patio and terrace openings without the mass of a heavy scenic door.
Matched window option
Same PS128 system available as a sliding window for coordinated fenestration.
CW-PG40 structural rating
Commercial sliding performance messaging aligned with Phantom S-Series positioning.
Thermal-break frames
PA66 thermal break and Low-E glazing packages for Title 24 project paths.
Configuration Notes
- Primary role: slimline patio / sliding door.
- Typical OX / XO / OXO / OXXO layouts; confirm track count and stacking for multi-panel runs.
- Use PS150 when the opening requires heavy lift-slide, pocket, or large scenic door performance.
Structural Data
AAMA/WDMA/NAFS structural performance for this product — air, water, and structural design pressure.
| Metric | Value |
|---|---|
| Test standard | AAMA/WDMA/CSA 101/I.S.2/A440 (NAFS) |
| Performance class | CW |
| Performance grade | PG40 |
| Design pressure | ±1920 Pa (±40 psf) |
| Structural test pressure | ±2880 Pa (±60 psf) |
| Ultimate design wind load | ±4320 Pa (±90 psf) |
| Air infiltration | ≤0.5 L/s·m² @ 300 Pa |
| Water penetration | 390 Pa (8 psf) |
| Published class / grade | CW-PG40 |
These are the NAFS CW-PG40 structural values for the PS128 sliding window and slimline patio door. Project-specific lab reports supersede this summary when issued.
Technical Downloads
Performance reports, CAD details, and exploded views for this product series. Warranty documentation is on the Technical Resources page.
Details
PDF & CAD Head/Jamb/Sill details.
Download — PDF & CAD DetailsExploded View Diagrams
Frame assembly diagrams showing how components fit together.
Download — Exploded View DiagramsCertifications & Standards
ASTM / NFRC Certified Compliance
Thermal
NFRC 100/200
Structural
AAMA/WDMA/CSA 101/I.S.2/A440
Acoustics
ASTM E90
CA Title 24 Compliant - Designed specifically for California energy standards
Operation Types
Slimline Patio Sliding
Primary door operation for PS128 — slim sightlines with smooth horizontal travel for residential patio openings.
Multi-Panel
OX, XO, OXO, and OXXO layouts for wider spans; confirm track count and stacking for multi-panel runs.
Corner & Custom
Site-Specific Engineered
Corner and specialty layouts available when coordinated early with the design and structural team.
Finish & Configuration Options
California Palette (Standard)
- Matte Black (RAL 9005)
- Dark Bronze (AAMA 2604)
- Arctic White
- Clear Anodized
Glass Options
- Dual-pane Low-E with argon
- Triple Glazing (Solarban 60/70)
- Laminated Security Glass
- Spectrally Selective Triple-Silver Low-E
Configurations
- OX / XO
- OXO
- OXXO
- Custom multi-panel slimline patio
Opening Configurations
