V-Series · Single Hung

YPI Phantom V-Series PH118

Name: YPI Phantom V-Series PH118
Brand: YPI Glazing Systems

PH118 is the single-hung solution for bedrooms and secondary spaces that need familiar vertical operation, balanced sash travel, and Phantom series sightlines.

View Specifications Contact Us

Single hung

YPI Phantom V-Series PH118 Gallery

Single-hung operation, a lower-left corner profile, and a closed single-unit elevation.

Single hung elevation

Lower sash operable for ventilation; upper sash fixed for classic hung proportion.

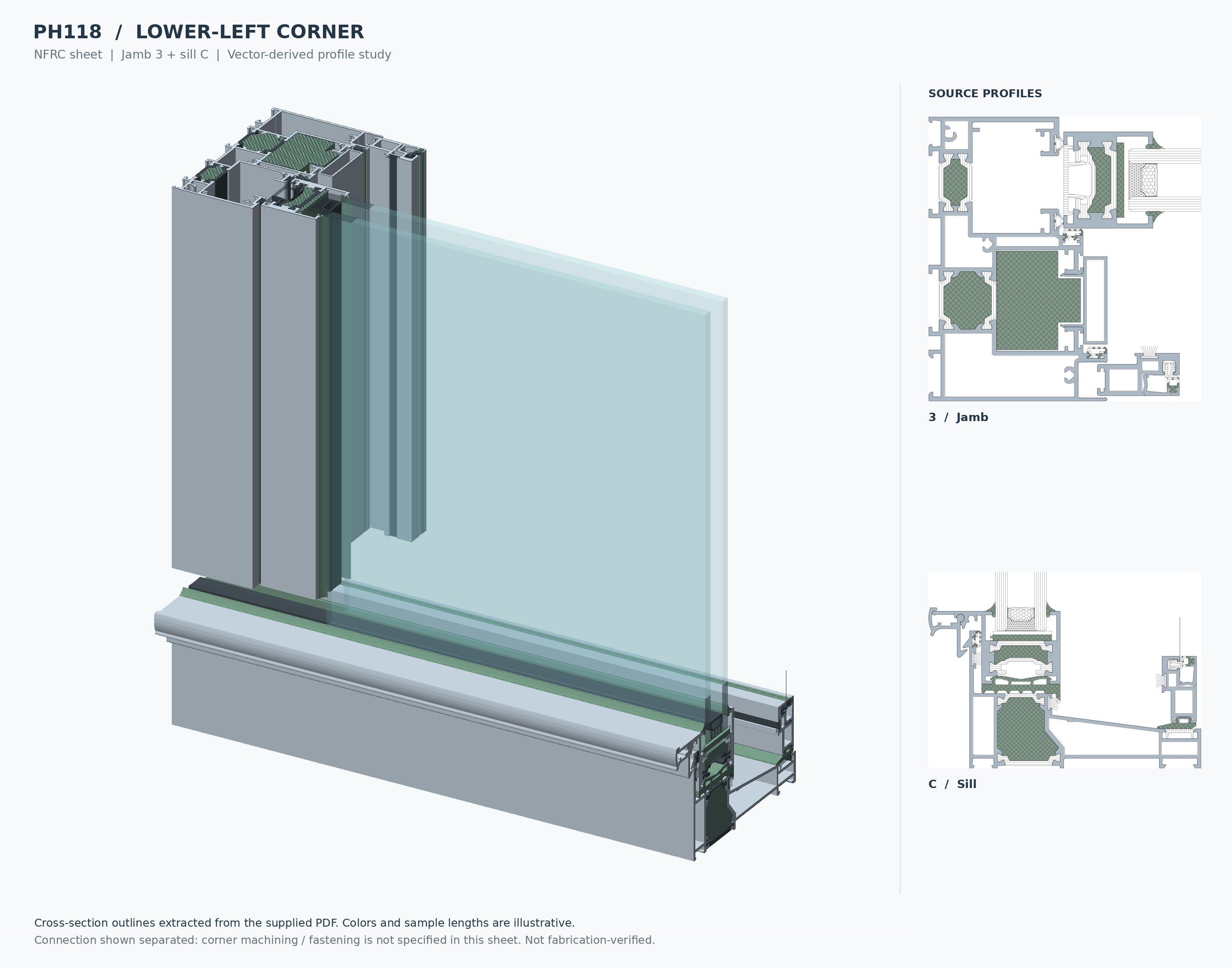

Corner profile

Lower-left corner of the hung frame: jamb and sill sections with the insulated glass.

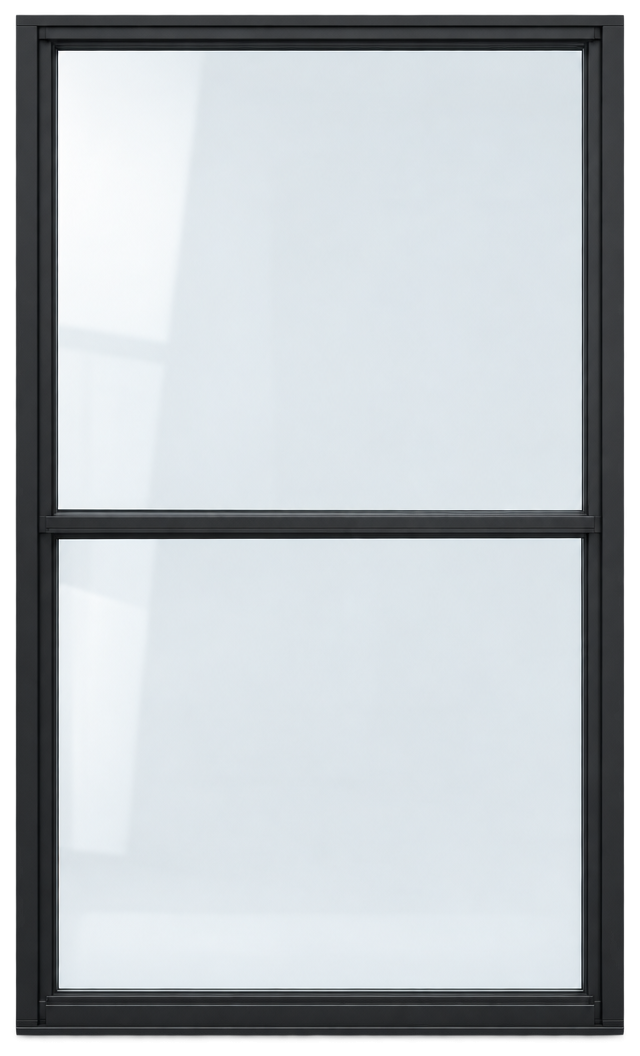

Closed elevation

A single hung unit in a matte black frame, shown as a clean elevation.

Technical Specifications

Dimensions & Structure

Feature	Specification
Frame Depth	75mm – 118mm class (2.95 – 4.65 inches)
Aluminum Alloy	6063-T5 High-Precision Extruded Aluminum
Wall Thickness	2.0mm (Commercial Grade Standard)
Max Panel Height	Up to 2.4 Meters (approx. 8 Feet)
Max Panel Weight	100kg (220 lbs per sash with block & tackle balances)

Thermal Performance

Feature	Specification
Thermal Break	24mm Multi-Cavity PA66 Reinforced Nylon
Standard Glazing	5mm Low-E / 12A / 5mm Tempered
U-Factor	0.31 – 0.55 BTU/h·ft²·°F
Climate Zones	California Title 24 Compliant

Engineering & Performance Highlights

Vertical ventilation

Single-hung operation provides controlled airflow for bedrooms and secondary rooms.

Commercial wall thickness

2.0mm commercial-grade extrusion standard for structural integrity and wind-load resistance.

Narrow profiles

Slim frames keep daylight high while matching the Phantom architectural language.

Weather-tight closure

Cam locks and weather seals designed for daily residential use with commercial-grade durability.

Configuration Notes

Primary role: single hung for bedrooms and ventilation.
Confirm egress and clear opening requirements for sleeping rooms on each project.
May be combined with fixed ES150 units above or beside for larger openings.

Structural Data

AAMA/WDMA/NAFS structural performance for this product — air, water, and structural design pressure.

Metric	Value
Test standard	AAMA/WDMA/CSA 101/I.S.2/A440 (NAFS)
Performance class	CW
Performance grade	PG40
Design pressure	±1920 Pa (±40 psf)
Structural test pressure	±2880 Pa (±60 psf)
Ultimate design wind load	±4320 Pa (±90 psf)
Air infiltration	≤0.5 L/s·m² @ 300 Pa
Water penetration	390 Pa (8 psf)
Published class / grade	CW-PG40
