YPI Phantom V-Series ES95

Name: YPI Phantom V-Series ES95
Brand: YPI Glazing Systems

ES95 delivers casement / outswing operation for spaces that need strong ventilation and compression seals. Specify as singles, pairs, or banks while keeping Phantom sightline discipline.

View Specifications Contact Us

Casement / outswing

YPI Phantom V-Series ES95 Gallery

Casement operation, with a closed single-unit elevation.

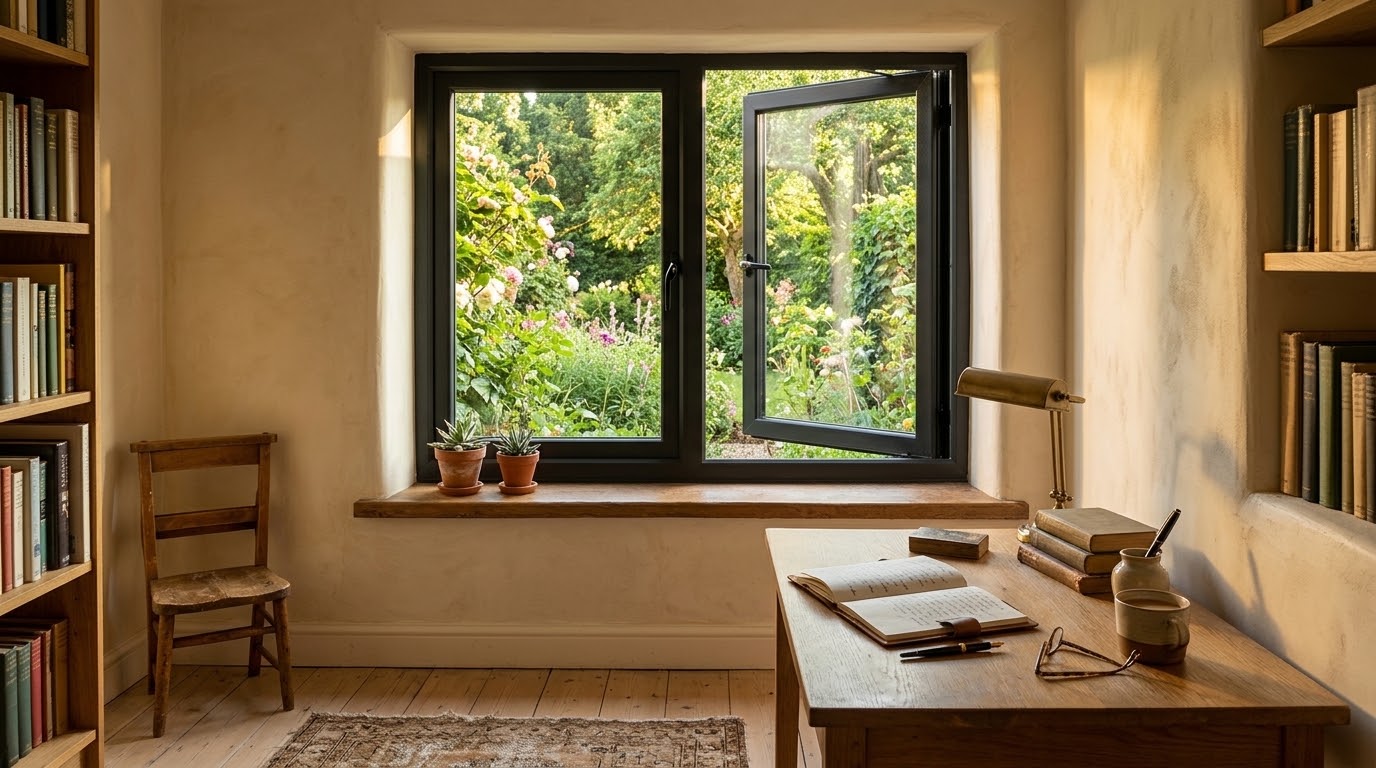

Casement outswing

A black-framed casement in a study. The right sash swings open to the garden; the left lite stays fixed.

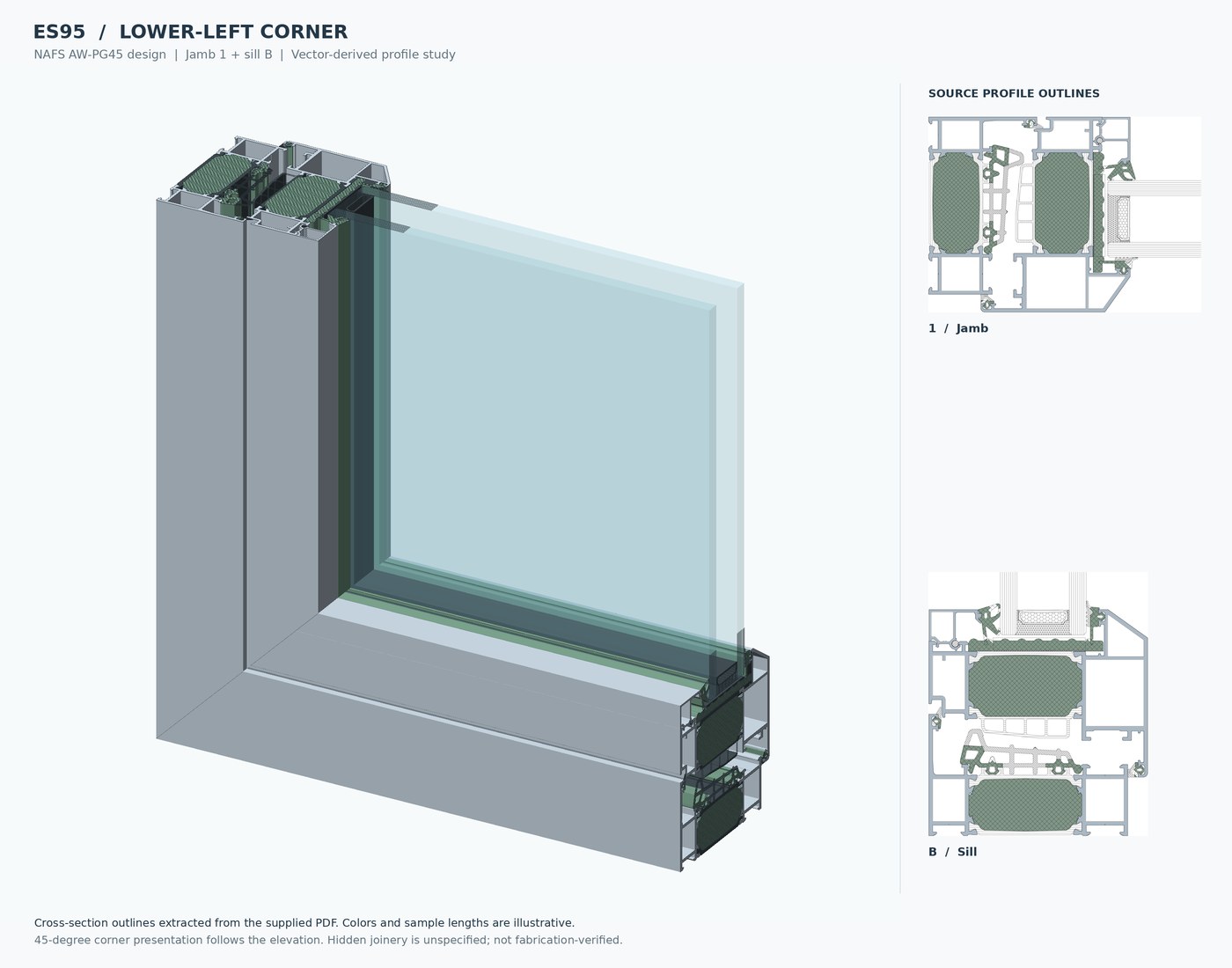

Corner profile

Lower-left corner of the casement frame: jamb and sill sections with the insulated glass.

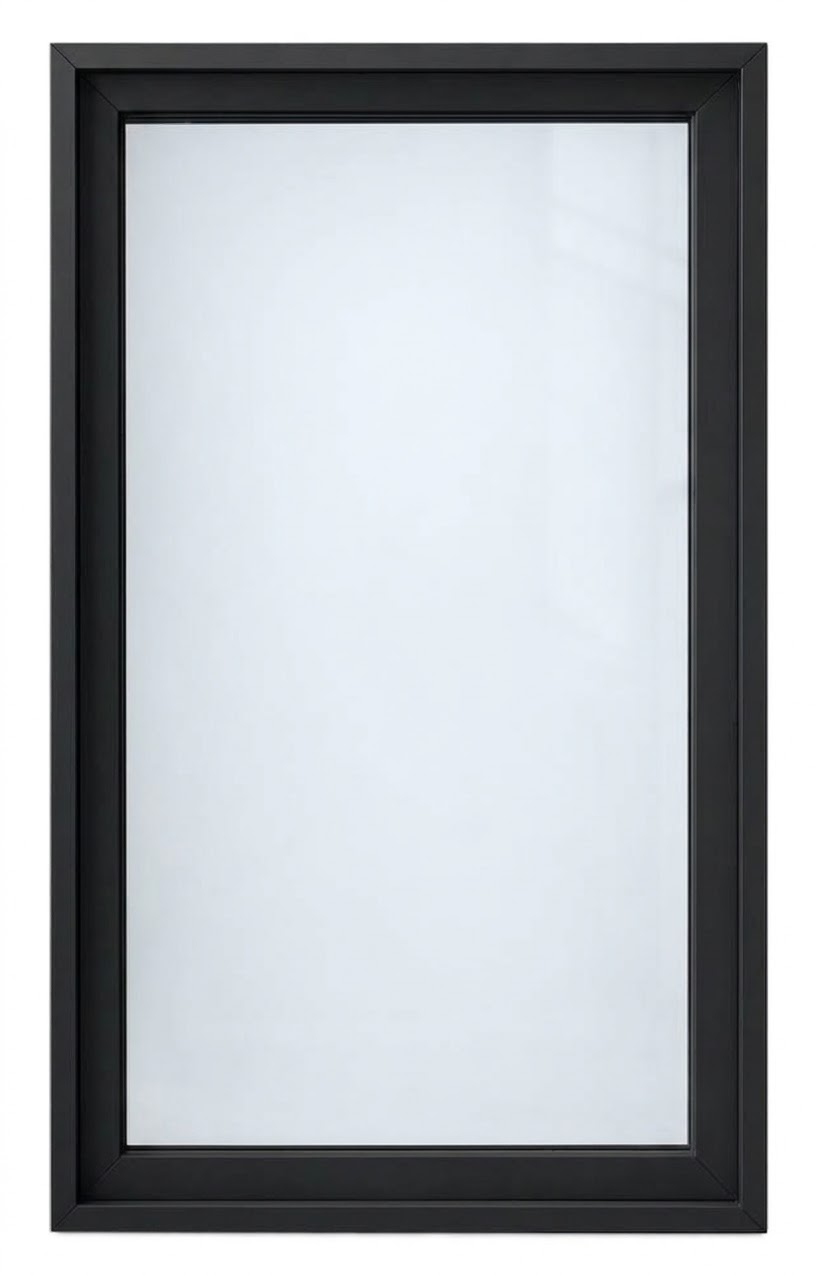

Closed elevation

Single casement unit in a matte black frame, shown as a clean elevation.

Technical Specifications

Dimensions & Structure

Feature	Specification
Frame Depth	95mm class (approx. 3.74 inches)
Aluminum Alloy	6063-T5 High-Precision Extruded Aluminum
Wall Thickness	2.0mm (Commercial Grade Standard)
Max Panel Height	Up to 2.4 Meters (approx. 8 Feet)
Max Panel Weight	Per hardware schedule (Sized to project wind load)

Thermal Performance

Feature	Specification
Thermal Break	Multi-Cavity PA66 Reinforced Nylon
Standard Glazing	Low-E dual pane with argon (project-specific)
U-Factor	0.20 – 0.45 BTU/h·ft²·°F
Climate Zones	California Title 24 Compliant

Engineering & Performance Highlights

Casement performance

Outswing casement geometry supports strong air/water performance when hardware and seals are correctly specified.

Thermal class

Casement configurations use a U-factor of 0.20–0.45.

AW-PG45 structural rating

Architectural window rating: design pressure ±45 psf, structural test pressure ±67.5 psf, and water resistance of 9 psf.

Elevation flexibility

Specify singles, pairs, or banks to match facade module without mixing unrelated frame systems.

Configuration Notes

Primary role: casement / outswing.
Pairs and banks are supported; verify hinge side and egress clearances on the drawings.
Coordinate finish and glass package with flanking ES150 fixed or PH118 hung units as needed.

Structural Data

AAMA/WDMA/NAFS structural performance for this product — air, water, and structural design pressure.

Metric	Value
Test standard	AAMA/WDMA/CSA 101/I.S.2/A440 (NAFS)
Performance class	AW
Performance grade	PG45
Design pressure	±2160 Pa (±45 psf)
Structural test pressure	±3240 Pa (±67.5 psf)
Ultimate design wind load	±4860 Pa (±101.25 psf)
Air infiltration	≤0.5 L/s·m² @ 300 Pa
Water penetration	430 Pa (9 psf)
Published class / grade	AW-PG45
